MULTIPOST SYSTEM

Available to buy on line

Posts for fencing mesh come in various materials and styles. Timber posts are traditionally used, normally set in concrete. They can be obtained in pressure treated softwood which will resist rotting for a long time but it will decay eventually. Concrete posts are another option, again traditionally set in concrete. They will never rot but can be cracked by impact and are very heavy. Concrete and timber posts are both heavy and digging holes is hard work, therefore to make fencing more simple and easy in the garden, we offer our newly designed Multi Post. They are light to handle and are made with low carbon steel sheets with high adhesive plastic coating, giving a high quality and long life. These posts  can be fixed into earth sleeves for easy and quick installation, we also offer a longer Multi Post for concrete fixing if it is preferred.

Whether using earth screws or concrete fixing it is important that at each end post and for any change in direction you must install straining posts with bracing.

Once the posts are installed it is simply a matter of fixing your preferred mesh to the system, you can use either welded mesh or chain link mesh. The welded mesh option is easier to fix as it requires less tensioning and no straining wires.

It is also important you choose the correct length of post for different height fences.

To make the Multi Post selection easier we have packaged Post Kits for 48" height and 72" height fences, they come complete with all the items you will need for each 25M straight run fence. If you have a change in direction you will also need 1 change in direction kit for each change.

Weldmesh post kit with earth sleeves	Chainlink post kit with earth sleeves	Change direction kit with earth sleeves

 Multi Post Fence Kits for Concretefix installation supplied with all fittings required including C Clips, 10 posts and 2 straining posts for 25M roll

Weldmesh post kit concrete fixing	Chainlink post kit concrete fixing	Change direction kit concrete fixing

    Posts and Earth Sleeves available individually

Multipost	Earth Sleeve	C Clip Pliers	C Clips

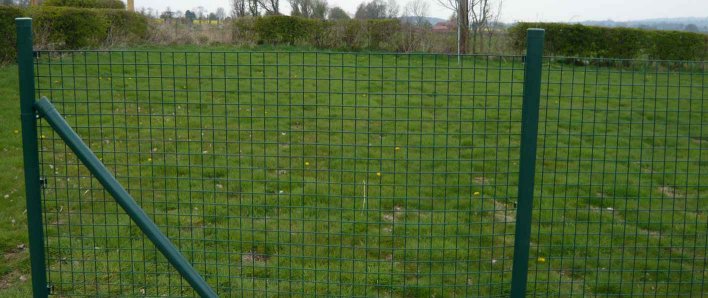

THE WELDED MESH SYSTEM

FOR WELDED MESH ROLLS CLICK HERE

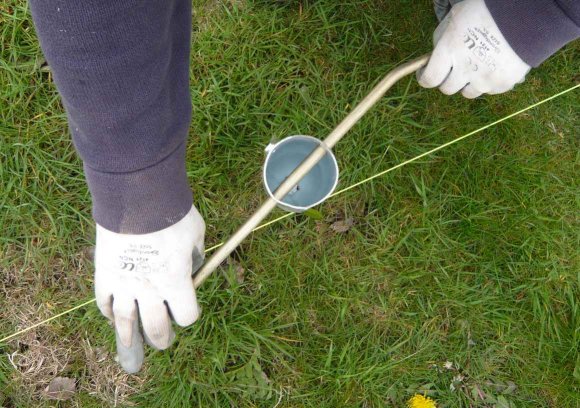

Screw the earth sleeves into the ground at not more than 3000mm centres.

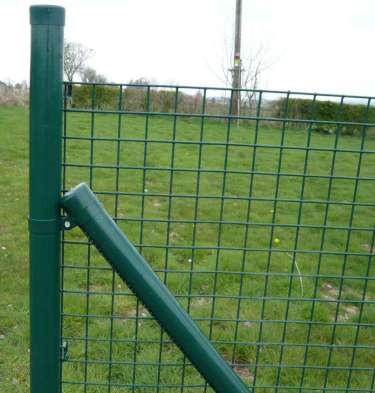

At the start and end of the run fix a bracing post to each upright post with the brackets provided.

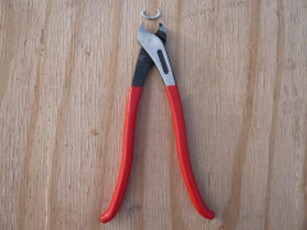

Place all the posts into the sleeves. Use the stainless steel  c clips provided to attach the mesh to the posts.     The  c clips can be closed with pliers, however we strongly recommend the use of our c clip pliers for a professional and easy installation	C clip pliers with a clip ready for installation	End view showing the profile of the c clip on a post	Close up showing mesh attached to the post with a c clip

Tighten all fixings.

Welded Mesh is the easier system to erect due to it not requiring straining wires

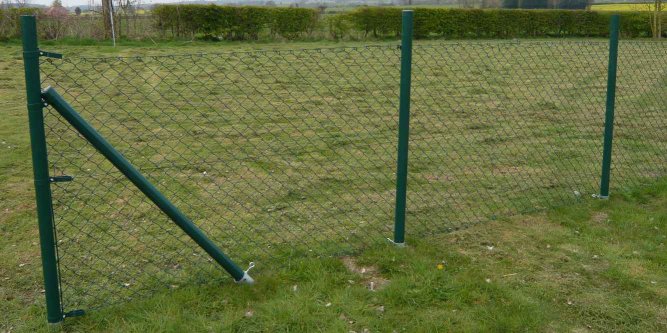

THE CHAIN LINK SYSTEM

FOR CHAIN LINK ROLLS CLICK HERE

If you would prefer to use chain link mesh, installation of the posts is the same as the welded mesh system described above.

Then attach the chain link mesh as shown here.

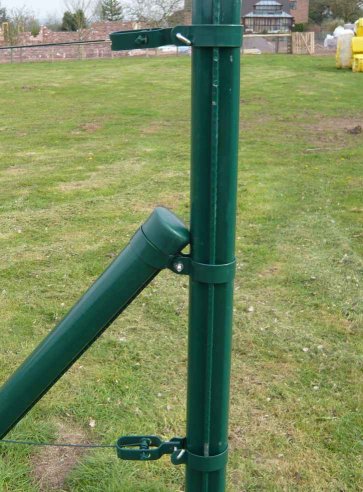

Attach a  straining wire ratchet with the brackets provided at the top, middle and bottom of the start and end post.

Attach the straining wires to the start and end of the run and tighten with the ratchets.

Insert the stretcher bars into the chain link mesh and attach to the start and end posts with the brackets provided.

Clip the mesh to the straining wires at regular intervals.
