Gas Bottle Cage

Gas Storage Cage

Meet HSE requirements. A gas bottle that has its regulator damaged can become airborne and lethal.

Our panel system is modular so any shape can be made to suit the number of gas bottles you stock. The cage panels simply bolts together, the doors are prefit.

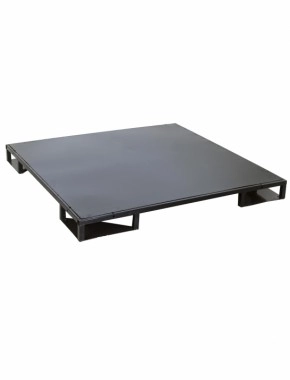

There is metal pallet base option on the 4ft square cages to allow the filled cages to be moved by fork lift truck.

The cages are used to protect from theft, they are padlockable. For this reason the cage panels are commonly used as site toolboxes that can be easily assembled/disasembled.

The smallest size available is 4ft high x 4ft x 2ft.




Gas Bottle Cage Size & Price Calculator

The below calculator works out the cost of a run of any given size.

  • Firstly how many sides would your gas bottle cage have? Is your cage freestanding (4sided) against a wall (3 sided) or against 2 walls i.e. in a corner (2sided)
  • Do you want a mesh Roof? selct yes or no
  • Select your sizes. The normal height is 6ft (1.8m) but we also offer 1.2 and 2.4m options.
  • Use the "Gas Bottle information"-"what size how many bottles" tab to see what is required
  • If you want to discuss what size gas storage cage you should have then please call us and we would be happy to help
  • The calculator produces the panel list for the cage you require that can be then added to your basket in one go.
  • The more panels you have the cheaper they get, don't be suprised if the panels in your basket get cheaper when you add more.
  • If over 2.4m in both length and width you will need to install support post/s. The calculator works out panels to cover the area only and does not calculate what is required to roof support the roof. We don't supply support posts.






Custom Calculations

Sides:
4 sides
3 sides
2 sides
Roof:
Yes
No
Dimensions:
Height (m)
Long Side (m)
Long Side (m)
Short Side (m)

Side 1 (m)
Side 2 (m)
Preformed:
4ft cube with Forklift base4ft square x 6ft high



Product Filter

Ex VAT Inc VAT
Metric Imperial
List Grid

Height

Width



First 1 2 3 4 Last

Example kits

These are example kits, Any size combination of 2ft and 4ft can be made using the panels below.


Width
Height
Aperture
Thickness
Finish
Weight
Quantity

Price

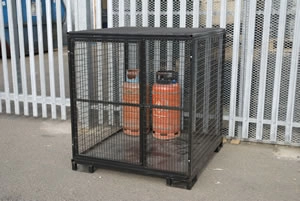

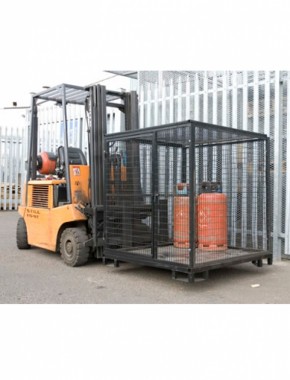

4ft cube gas bottle cage with forklift base
Width: 1.2 x 1.2 m48 x 48 (in)
Height: 1.2 m48 (in)
Aperture: 50 X 25 mm2 x 1 (in)
Thickness: 3.5 mm9 G
Finish: Galv/Black
Weight: 0 kg

Update
Prices

Price: £492.85
£410.71
(per cage)

Next Day Optional
product star product star product star product star product star
  • This product is available shipping to Europe

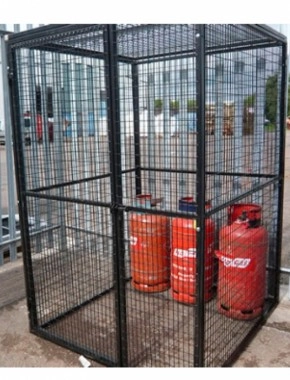

  • 4ft x 4ft, 6ft high walk in gas bottle cage
    Width: 1.2 x 1.2 m48 x 48 (in)
    Height: 1.8 m72 (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black
    Weight: 0 kg

    Update
    Prices

    Price: £472.20
    £393.50
    (per cage)

    Next Day Optional
    product star product star product star product star product star
  • This product is available shipping to Europe
  • Gated Panels

    All Gates have a bolt lock and accept a padlock. The opening part on 4ft and 6ft high gates is 2and a half feet, 8ft high gates are fully opening with a removeable bottom bar.


    Width
    Height
    Aperture
    Thickness
    Finish
    Weight
    Quantity

    Price

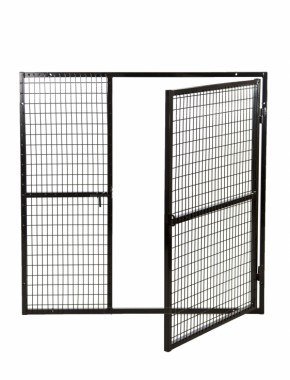

    Mesh panel 2x1x3.5mm 1200 x 1200 door
    Width: 1.2 m48 (in)
    Height: 1.2 door m48 door (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black Door
    Weight: 17 kg

    Update
    Prices

    Price: £131.18
    £109.32
    (per panel)

    product star product star product star product star product star
  • This product is available shipping to Europe

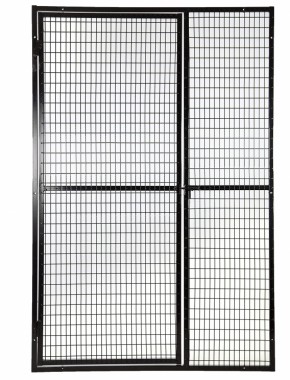

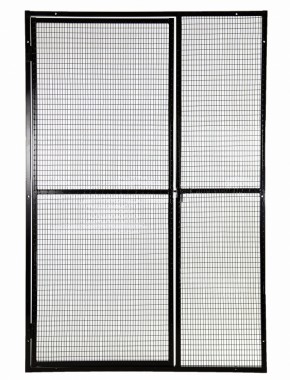

  • Mesh panel 2x1x3.5mm 1800 x 1200 door
    Width: 1.2 m48 (in)
    Height: 1.8 m72 door (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black Door
    Weight: 26 kg

    Update
    Prices

    Price: £154.82
    £129.02
    (per panel)

    product star product star product star product star product star
  • This product is available shipping to Europe
  • Mesh panel 2x1x3.5mm 2400 x 1200 door
    Width: 1.2 m48 (in)
    Height: 2.4 m96 door (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black Door
    Weight: 30 kg

    Update
    Prices

    Price: £199.58
    £166.32
    (per panel)

    product star product star product star product star product star
  • This product is available shipping to Europe
  • Mesh panel 2x1x3.5mm 2400 x 2400 door
    Width: 2.4 m96 (in)
    Height: 2.4 m96 door (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black Door
    Weight: 32 kg

    Update
    Prices

    Price: £254.52
    £212.10
    (per panel)

    product star product star product star product star product star
  • This product is available shipping to Europe
  • 6ft high side panels

    6ft high side panels as panels are drilled through face and side all panels can be used as both a side or a corner.


    Width
    Height
    Aperture
    Thickness
    Finish
    Weight
    Quantity

    Price

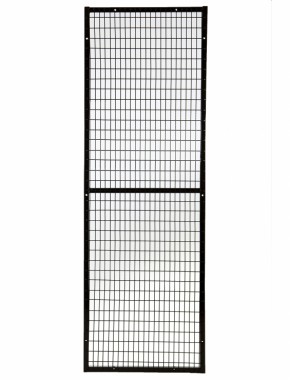

    Mesh panel 2x1x3.5mm 1800 x 600 panel
    Width: 0.6 m24 (in)
    Height: 1.8 m72 (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black
    Weight: 11 kg

    Update
    Prices

    Price: £58.02
    £48.35
    (per panel)

    product star product star product star product star product star
  • This product is available shipping to Europe
  • Mesh panel 2x1x3.5mm 1800 x 1200 panel
    Width: 1.2 m48 (in)
    Height: 1.8 m72 (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black
    Weight: 18 kg

    Update
    Prices

    Price: £88.68
    £73.90
    (per panel)

    product star product star product star product star product star
  • This product is available shipping to Europe
  • Mesh panel 2x1x3.5mm 1800 x 300 panel
    Width: 0.3 m12 (in)
    Height: 1.8 m72 (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black
    Weight: 11 kg

    Update
    Prices

    Price: £36.54
    £30.45
    (per panel)

    product star product star product star product star product star
  • This product is available shipping to Europe
  • Mesh panel 2x1x3.5mm 1800 x 900 panel
    Width: 0.9 m36 (in)
    Height: 1.8 m72 (in)
    Aperture: 50 X 25 mm2 x 1 (in)
    Thickness: 3.5 mm9 G
    Finish: Galv/Black
    Weight: 18 kg

    Update
    Prices

    Price: £66.54
    £55.45
    (per panel)

    product star product star product star product star product star
  • This product is available shipping to Europe

  • First 1 2 3 4 Last



    Delivery of Components.

    The components supplied are those required to assemble the cage as specified online by the customer. They will be delivered kerbside.

    Wherever possible a tail lift will be used to lower them to the ground where this is not practicable then the components will need to be manually handled.

    Prior to the commencement of assembly, the customer should check to ensure that all components as per the given inventory are present.



    Assembly of the Components.

    It is advised that when handling or assembling the components that suitable tear and cut resistant safety gloves and sturdy closed footwear are worn.

    Where heavier components are being handled or assembled it is recommended that two persons carry out the lifting, handling and supporting during the assembly process.

    The product must be assembled as per the layout supplied by Fine Mesh Metals Ltd.

    When assembling the cage it must be ensured that the tools used are in good condition and suitable for the task e.g. the right size to tighten the fixings supplied.

    The cage should be assembled on firm, level ground.



    Structures in excess of 2.0 metres in height.

    Where the structure is in excess of 2.0 metres in height then a suitable means of access and a working platform with adequate fall protection must be used.

    For competent trades persons and commercial customers the duty of care requirements in Section 2 and 3 of the Health and safety at Work Act 1974, the risk assessment requirements of Regulation 3 of the Management of Health and Safety at Work Regulations 1999 and Regulations 4-10 of the Working at Height Regulations 2005 must be met.



    For structures in excess of 2.4 metres.

    Any product in excess of 2.4 metres in height should be installed by a competent tradesperson ONLY. They should produce their own risk assessment and method statement for the task.



    Roof Supports for structures in excess of 2.4m in both width and length.

    The panels are supplied to cover the area only. The roof support has not been calculated and will need to be supported if over 2.4 metres in any direction. When the number of support posts required is being calculated it is important to take into account the potential for snow to rest on the roof as this will add considerably to the weight of the roof or the risk of collapse.

    The weight of snow is as below:





    Depth



    Area



    Weight



    Imperial



    1 inch



    1 square foot



    1.66 lbs



    Metric



    25.4 mm



    304.8 mm square



    0.75 kilos



    Fixings

    Nuts bolts and washers have been supplied to bolt the panels together. The doors are prehung. You will need your own fixing to attach to the ground or walls. The panels have been predrilled. For smaller cages a plastic plug and screw will suffice.

    Contact details for assistance

    Should you have any queries regarding assembly please contact Fine Mesh Metals Ltd on 01902 810310, online using live chat or sales@finemeshmetals.co.uk.

    These can be added to any 4ft square cage. I.e a 4ft 6ft or 8ft high cage can accept this base panel.

    Gas bottle storage


    Cylinder Safety HSE Requirements

    https://www.calor.co.uk/media/wysiwyg/PDF/code-of-guidance-for-storage-of-cylinders.pdf

    please see the above for calor's guidance on the storage of gas bottles. The below is a summary.

    Commercial Gas such as Butane and Propane are defined under LPG regulation BS: 4250
    Leakage of liquid from the cylinder will result in large volumes of flammable gas. As this gas is heavier than air, leaked gas will flow at ground level and can be ignited at a considerable distance from source.
    It is for this reason that wherever possible gas bottles should be stored outside .
    Cylinder stacks and cylinder areas situated outdoors are un zoned provided they comply with the following distance requirements. Furthermore there should be no cellars, pits or openings to buildings within 2m of the storage area.


    Total quantity of LPG Storage in containers

    Minimum separation distance to boundary, building or fixed ignition source,

    15 to 400kg

    1m

    400 to 1000kg

    3m

    1000 to 4000kg

    4m

    The outlet valve of every cylinder should be kept closed while the cylinder is in storage. Plastic caps or plugs must be fitted to cylinders even when they are considered to be empty. Cylinders must be stored with their valve uppermost and at least one 9kg dry powder fire extinguisher must be kept within the vicinity of the storage area and serviced regularly.

    If storage outside is impossible:
    The Maximum weight of Lpg cylinders stored within a shop or office is 70kg, maximum cylinder capacity is 20kg or no more than 5 cylinders. If there is  residential  accommodation attached this is reduced t0 15kg.
    For the carriage of cylinders in closed vans see UKLPG Code of Practice No. 27.

    Gas bottle storage Specifications:

    The panels are manufactured from 2" x 1" Welded Mesh with 3mm diameter wire with a 25mm box section frame which are galvanized then black powder coated. If you have a wall you wish to incorporate into the pen you can attach our panels with wall plugs using the holes already available in the panels.

    Several sizes of gas bottle panels are available, sides doors are 6ft x 4ft. (1830mm high x 1220mm wide) with the opening section being 700mm.
    Storage cages are very easy installation with only 3 coach bolts required to join panels. The same applies for the doors, which are already fitted into the frames

    All panels are pre-drilled on the verticals through both faces this means that any panel can be used either as side or a corner panel. Hence the system is versatile enough to make any shape or length

    As the system is modular it can be taken down quickly and reassembled. This allows you to move the run around.
    Modular Design means you can easily choose to have your cage as big or small as you require, and if at a later date you decide you need it to be larger, then all you have to do is add more panels

    Storage Cage accepts padlock under latch.

    Strong Welded Hinges and a Heavy Duty Spring Bolt on the Door Panel

    Profile roofs are available if required standard roof panels to fit any shape

    All available from stock

    bottled gas storage

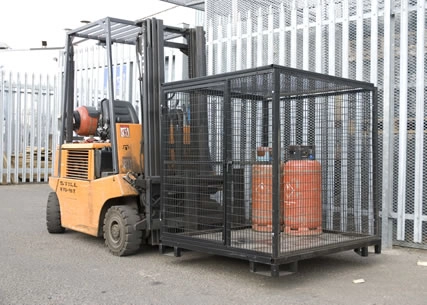

    Small outdoor gas storage container

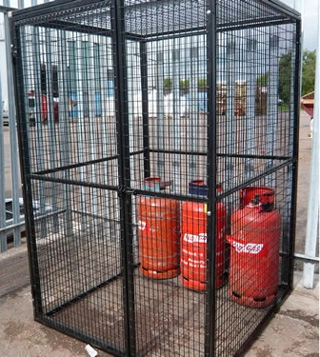

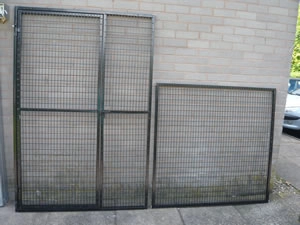

    Tall Gas Storage Cage
    Gas Bottle Cage Mesh Panels

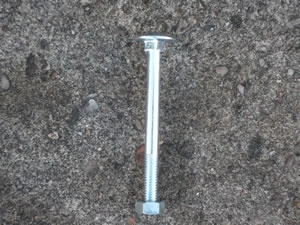

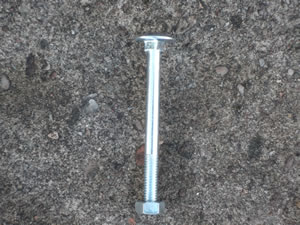

    Gas Bottle Fixings
    gas cylinder storage
    Gas Cylinder Store
    Man Making Gas Container

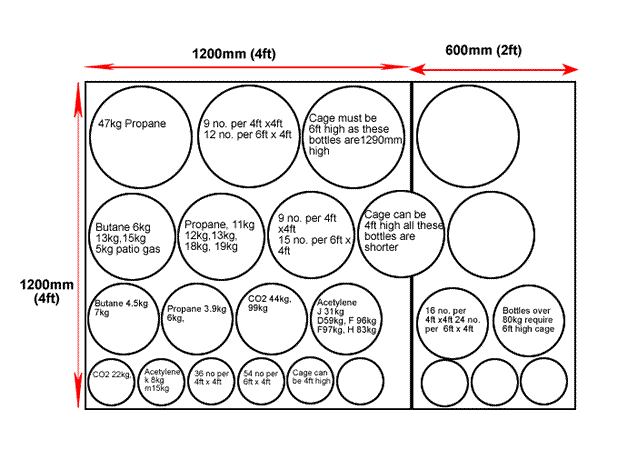

    Gas cylinder Size Chart

    The below Chart Is a scale drawing of Common gas bottle types and how they fit into the gas bottle Storage panels. The cages can be extended in any combination of 2 feet sizes.

    Example if you had 9 number 47kg propane bottles to store. You could do this in a 4ft x 4ft cage or a 12ft x 2ft cage.

    Once you have decided what size you want and how many sides you require (3 sided if its going against a wall, 2 sided if its going in a corner) click here to go to the calculator to find out the price.

    gas bottle sizes

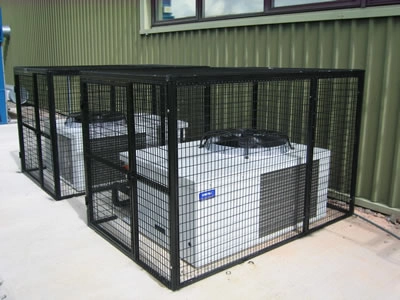

    Air conditioning cages are widely used to stop rubbish getting into the units either naturally or through vandalism.

    Air conditioning units are targeted for theft due to the high resale value the air conditioning cages help defend against this.



    air conditioning cage

    4ft x 4ft Door at front for access.

    air conditioning cages

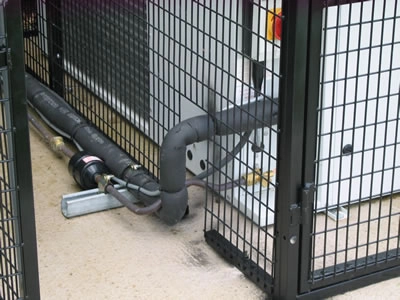

    This example is of 6ft x 4ft x 4ft high cages that have been modified with a jig saw to accept the pipework.

    We discount based on quantity, if you input your quantities in the table and click the update button it will give you your discounted prices based on the total no. of items selected (in all rows). This also takes account of other items you have in your basket.

    To use the calculator. Select if its 4sided (freestanding), 3 sided (against a wall 2 sides have to be the same length)or 2 sided (in a corner).

    Select with or without a roof, the roof is the same mesh construction as the sides.

    Finally input your sizes and press the calculator button.
